GA-1020 | |
Display Resolution (dot) |
640 x 480 |
Screen Size (Inch) (Diagonal) |
10.2" |
Operating Voltage |
DC 12V ± 10% , 1A |
Power Consumption |
<7W |
Operating Temperature |
-5° C ~ +60° C |
Storage Temperature |
-20° C ~ +60° C |
Weight (g) |
800 ± 15 |
Dimensional Outline (mm) |
243 x 185 x 10.4 |
Input |
VGA or AV / VGA |
N/P( Auto/Manual SW) |
NTSC/PAL |
| |

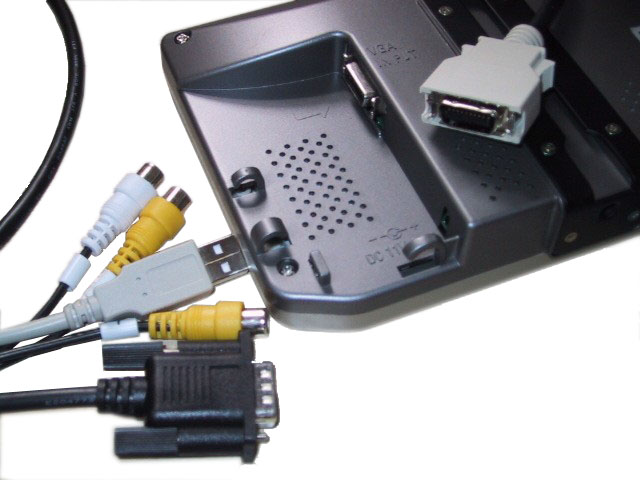

Cable | 1.8 meter (standard) |
5 meter | |

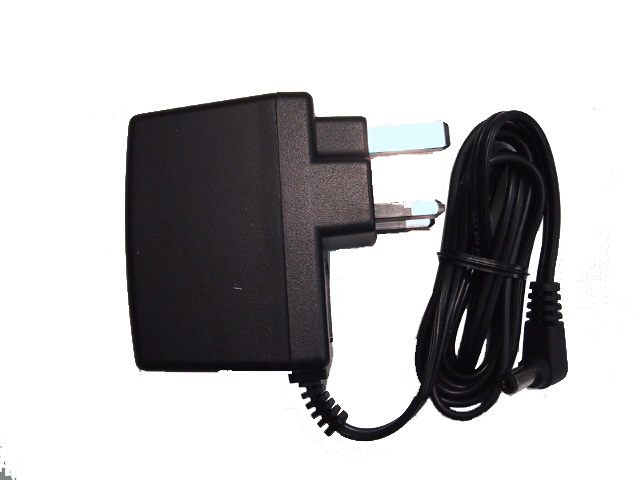

Power Adaptor (regulated, I/P: 100VAC to 240 VAC auto) | US / European / UK plug |
Car charger | |

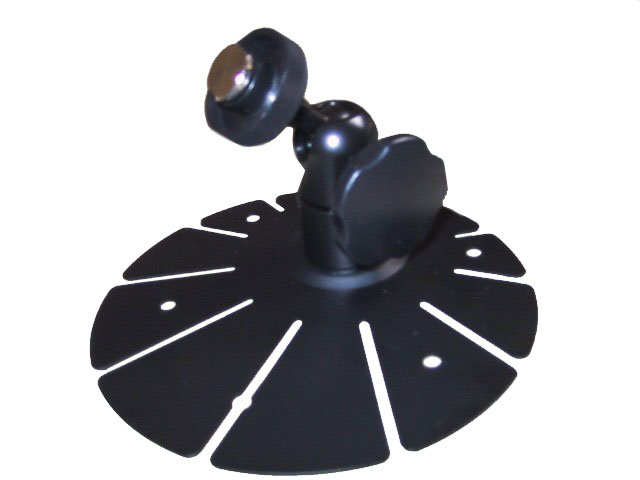

Quick Release stand | 4.8" base for 7" monitor models |
6.5" base for 8" monitor models | |

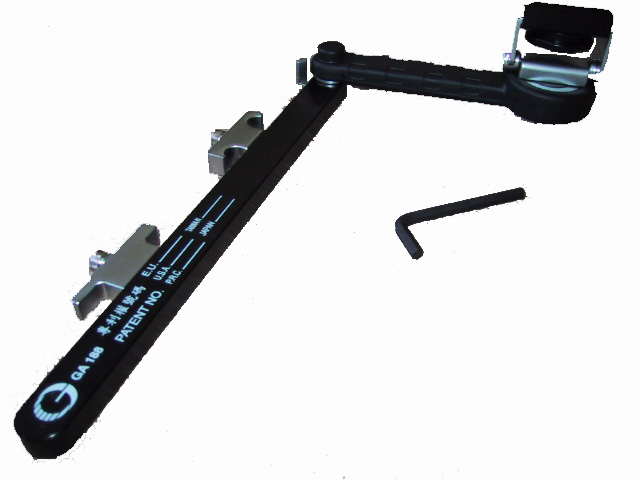

GA-188 Back seat bracket | |
Monitor holder | screw with knob (suitable for camera) |
Adjustable angle | 270° |
Weight (g) |
380 ± 10/ 590 ± 10 |
Dimensional Outline (mm) |
170*130*30 /168*132*40/ 175*140*35 |
Colour |
Black or metal silver |
Link to GA-MCA1 Mini CCD Camera
