Model No.: GA-MCA1

Mini CCD Camera


Image Sensor

1/4" 270,000pixels

Effective Pixel

NTSC 152(H), 492(V)

Pixel Size

NTSC 7.2u m(H), 5.6u m(V)

Scanning Frequency

15.734KHz(H), 59.9Hz(V)

Video Output Signal

1.0Vp.p.  75 ohm

Electrical Auto IRIS

NTSC 1/60-1/10,000

Operating Temperature

5¢XC~40¢XC /RH90% Max

Lens

F=2.6, f=3.9mm, 52¢X(H), 40¢X(V)

Supply Voltage

DC 12V ¡Ó10% , 400mA

Sensitivity

2 LUX

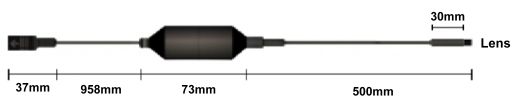

Lengh

138cm  (or  257cm)

Weight

80g
