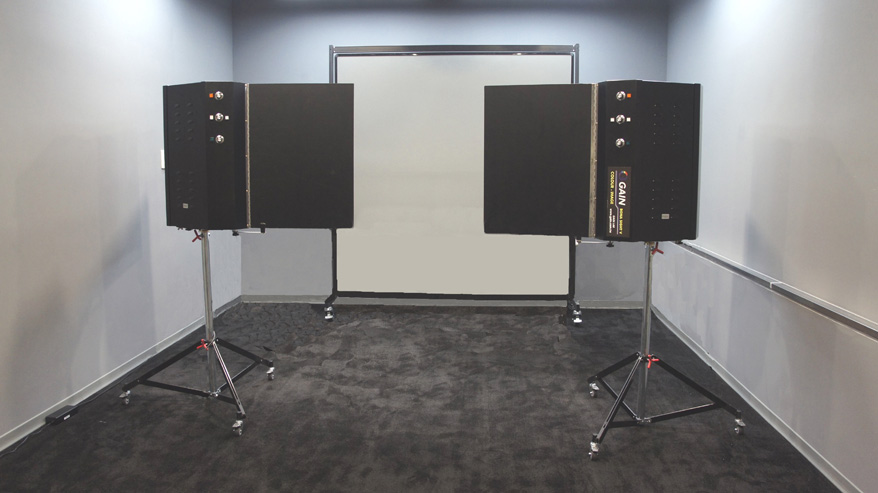

GAIN BS II-V

BS II-V 專業DC用多光源燈箱及 Kodak™ 18%磁性灰板

BS II-V Color Matching Environment Lighting with Kodak™ 18% gray board

Features

1. Step-less dimmer for Normal / low light environment with standard light sources

Step-less dimming lighting system (10%~100%) to ensure any light level can be achieved in each light sources, especially in low light environment(low lux)!

2. Tripod with wheel for convenience movement

need even lower then 10% (25lux) of illuminant? No problem! With BS II-V, just move back, so you can have as low light as you demand in your dark room!

3. Illuminate multi light source simultaneously

Simulate the environment of multi light to meet demand of other color temperature without keep changing light tubes!

4. Multi Light Sources for color matching

With our several years understanding, a single light source could never solve the problem of color changes. So we employ standard average north-sky daylight with a color temperature of 6500k and standard Tungsten (A light source) with a color temperature of 2856k to solve the problem of metamerism. Because the difference of the two light temperature has included other light sources: fluorescent light and average sun light (C light source), so, if under Daylight and standard A light source could have a consistent color, then, there shall be no distinct difference under other light sources. It has solved the problem of single light source in an efficient color matching operation.

5. High-efficiency Fluorescent Light Identification

Similar fluorescent light can be added to the color matching fluorescent light used by your customers (such as TL84, CWF…) to match the color matching environment of your customers.

6. All-weather Advantages

It shall not be influenced by different brightness in the day, night or fair, cloudy or rainy climate, so that color matching and identification can be consistent

7. Common Color Matching Environment

Regardless of the location at the office, laboratory, factory, etc. We shall have a common and reliable standard color matching environment which will greatly reduce the cases of complaint or disputes from the customers. It will provide you with a smooth working condition.

Specifications
Dimensions (each / cm)		53 x 17 x 158~192 (Width x Depth x Height_min ~ Height_max)
Weight		35 kg (77.10 lb.)
Power		110 or 220 VAC/60Hz
Model Illuminants		BS II-V
D65	6500K, CIE D65 Average North Sky Daylight	·
TL/84	4100K, European shop Fluorescent	O
CWF	4150K, Cool White Fluorescent	O
U35	3500K	·
A	2856K, Typical Incandescent Home Lighting	·
UV	Ultraviolet	O
D50	5000K, CIE D50 Midday Daylight	O
D75	7500K, CIE D75 North Sky Daylight	O
U30	3000K	O
F	2700K, “F” Light source	O
Note: ·: Standard, O: Optional

NB: We have wide variety of professional light sources, if you want any particular one, please email us and indicate brand, model of light source you need!

TM: Trade Mark for Kodak
