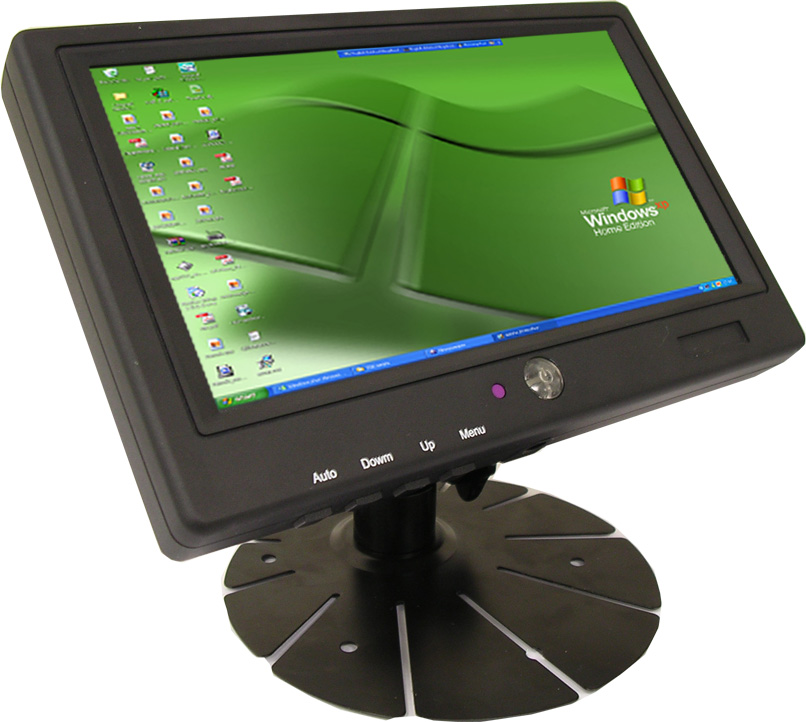

GA-760AR

Features:

The all-new GA-760AR inhered quintessence directly from Gain Associates. This all aluminium case, wide-range power input (8VDC - 36VDC) 7" monitor designed by Gain's elites. This State-of-the-art high brightness (600 cd/m) LED panel technology with Anti Reflectance (AR) coating brings you most comfortable viewing experience and quality ever!

Specification:

Model

GA-760AR GA-760 AR-1
Power Voltage DC 8V~36V DC 8 ~ 36 V,
Polarizer AR+AG AR+AG
Size 7", 16:9 7" (16:9)
Display Resolutions multi-resolution (auto detect)

*Special tuned for 800 x480 @60Hz!

multi-resolution (auto detect)

*Special tuned for 800 x480 @60Hz!

Backlight Technology LED LED
Brightness 600 cd/m 600 cd/m
Video Input   ● Video Input x 2 (Composite Socket)
  ● Audio Input x 1 (Composite Socket)
  ● VGA (15 pin DIN) Input x 1
 VGA (15 pin DIN) Input
Touch Screen Yes Yes
Certificate Approved CE/ FCC/ E13/ RoHS CE/ FCC/ E13/ RoHS
Power Consumption < 8W < 8W
Operation Temperature -5C ~+60C -5C ~+60C
PAL/NTSC auto Switching YES YES
Weight (g) 750 750
Physical Dimension (mm) 188 x 120 x 24 188 x 120 x 24
OSD Controller (multi language) YES YES
Anti-Reflectance Surface Coating YES YES
Other Features
  • USB Touch Screen control
  • Optional IR remote control
  • USB Touch Screen control
  • Optional IR remote control
NOTE Suitable for in-Vehicle computer system,  Reverse camera, entertainment use. Suitable for in-Vehicle computer system,  Reverse camera, entertainment use.
